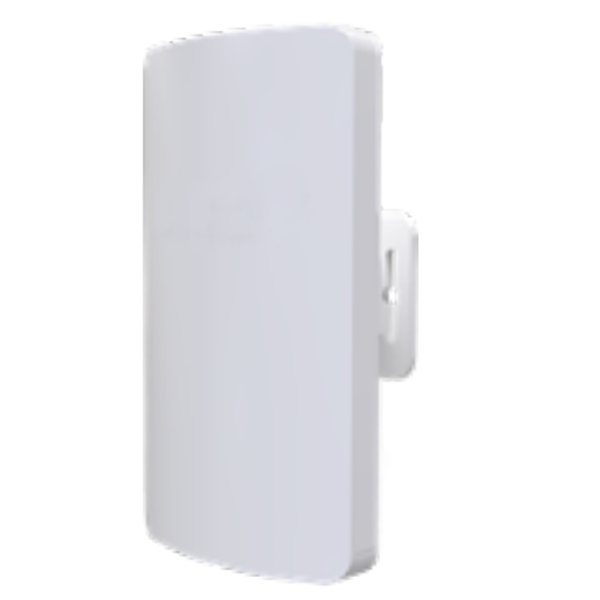

MX4001B-DI11 Wireless WIFI4 Bridge (3km)
MX4001B-DI11 Wireless WIFI4 Bridge (3km)
Category: Industrial IP68 Outdoor Wireless Bridge
Datasheet SERIES PRODUCTS contact
Description
MX-A5080-11I Outdoor 802.11ac Wireless Bridge (3km) supports a 5.8GHz frequency band with strong anti-interference ability, built-in Qualcomm® 560MHz frequency industrial grade CPU, convenient outdoor installation, easy to disassemble and use.
Features
- 5.8GHz frequency band, strong anti-interference ability
- Qualcomm® 560MHz frequency industrial grade CPU
- 300Mbps transfer rate
- 3km long distance transmission
- Built-in PA, strong signal, high-speed transmission
- Compliant with IEEE802.11a/n standard
- Built-in 11dBi gain antenna, wide transmission and reception rate
- Automatically adjust the transmission distance to avoid co-channel interference
- Signal indicator light assists in adjusting the angular alignment of the device
- With routing, AP, relay, wireless bridge and other working modes
- Exquisite shape, more flexible for engineering usage
- Outdoor installation is convenient, easy to disassemble and easy to use
- Outdoor safety protection, suitable for wind, frost, rain and snow situsations
- Rotated bracket is convenient to use
Specification
| Hardware Specifications | Qualcomm® AR9344 560Mhz CPU |
| RAM | 64MB |
| Flash | 8MB |
| Power amplifier chip | SKY85735 |
| Antenna Specifications | 11dBi 5.8GHz Antenna |
| Wireless standard | support IEEE802.11a/an standard |
| RF parameters | Maximum transmit power: 200mW (23dBm) |
| Maximum receiving sensitivity: -96dBm | |
| Operating frequency: 802.11a/an : 5.180GHz-5.825GHz | |
| Modulation technology | DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps |
| OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps> | |
| MIMO-OFDM: MCS 0-15 | |
| Wireless rate | 5.8GHz: 300Mbps |
| Physical connector | 1x 10/100Mbps WAN RJ45 Ethernet port |
| 1x 10/100Mbps LAN RJ45 Ethernet port | |
| 1x RESET button | |
| Indicator | 8x: power, WAN, LAN, WIFI, signal strength (1 to 4) |
| Power supply | 9-24V POE power supply |
| Maximum power consumption | <8W |
| Protection class | 2KV lightning protection;IP65 waterproof level |
| MTBF | >250000H |
| Installation | pole-mounted |
| Shell | imported ABS material, plastic shell |
| Physical characteristics | Dimensions: 165*95*51mm;Weight: 156g |
| Use environment: Working temperature | -30℃～65℃/-22~149℉ |
| Storage temperature | -50℃～75℃/-58~167℉ |
| Working humidity | 10%～90%RH non-condensing |
| Storage humidity | 5%～90%RH non-condensing |
