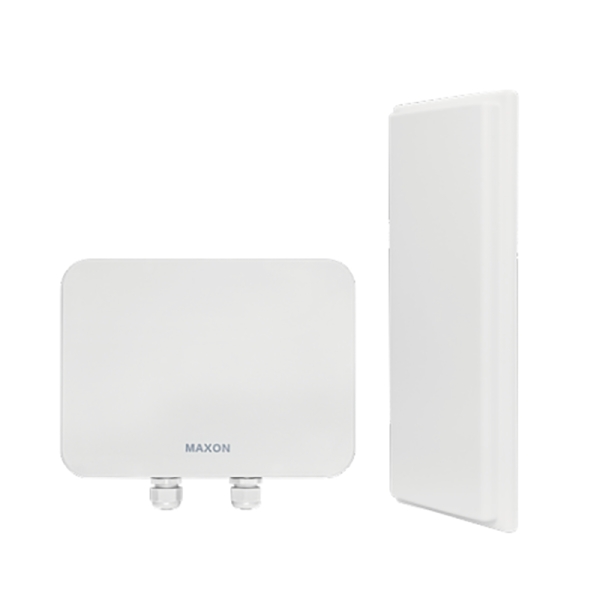

MX6021B-DE17 Wireless Wifi6 Bridge(5km)

MX6021B-DE17 Wireless Wifi6 Bridge(5km)

Category: Industrial IP68 Outdoor Wireless Bridge



MX6021B-DE17 Outdoor 802.11ax High Performance Wireless Bridge supports 802.11ax 2x2 MIMO technology, the maximum transfer rate can be 2400Mbps, with the transmission distance reaching more than 5 kilometres. It is suitable for high-bandwidth and low-latency network data transmission applications and can be widely used in security monitoring, agricultural broadband coverage, operator base station's last-mile deployment and other scenes.

It can provide customers with a stable wireless signal and ensure the good experience of stable, high-quality and convenient network services. It also incorporates several leading core achievements to make sure stable, reliable coverage and high-throughput performance in all scenes.

Its structural design fully considers the applications in extreme industrial environments and is designed to meet the IP68 waterproof standard, making it an ideal choice for industrial-grade Wireless Bridge.


  • Support IEEE 802.11an/ac/ax
  • Maximum transfer rate 2400Mbps
  • Intelligent wireless multimedia optimization technology, giving priority to the transmission stability of voice and video
  • Support web management, making equipment installation and maintenance more convenient
  • Support 802.3bt protocol (POE+)
  • Support polemounted installationing, horizontal and vertical position adjustable
  • Builtin 17dBi directional antenna, ultralong distance transmission
  • IP68 waterproof level is suitable for a variety of environments
  • *Wireless controller needs to be purchased separately


HARDWARE Shell metal + PC
Host size 262*194*72mm
Net weight 1650g
Installation pole-mounted
Protection level IP68
Antenna Gain 17dBi
Antenna type 90° external directional antenna
Transmission distance 0~5km
Power supply 48V 1.25A POE
HARDWARE Maximum power consumption (W) ≤18W
Maximum transmit power 24dBm
Connector (WAN) 100/1000Mbps/2.5Gbps
Connector (LAN) 100/1000Mbps/2.5Gbps
Working temperature -40℃~70℃/-40~158℉
Storage temperature -40℃~85℃/-40~185℉
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Installation kit 1 x RJ45 M25 PG waterproof connector
1 x Mounting Bracket Kit
1 x 48V 1.25A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
SOFTWARE Working Protocol 802.11an/ac/ax
Maximum speed 2400Mbps
Frequency range 5180~5320MHz, 5745~5825MHz
Channel width 20/40/80MHz
Working Mode WDS Access Point, WDS Client
Security configuration WPA2-PSK, Hidden SSID, IP/MAC Fliter
Application Mode Access Point, Client
Configuration management Support web configuration, support SNMP management
Ethernet software features support IPv4/IPv6 dual protocol stack
1024-QAM, MU-MIMO, UL/DL OFDMA, Network
processing unit (NPU), DNS, HTTPS, IPv4, LLDP, Proxy ARP, SMTP, SNMP
v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
SOFTWARE Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection
support 5.8GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
IoT expansion reserved UART interface to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc.
Others Scheduled restart, QoS, Watchdog
APPLICATION Wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring)
Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries
Operator Main Wireless Network Construction
Wireless network coverage of rural informatization construction


MX6021B DI16产品尺寸1

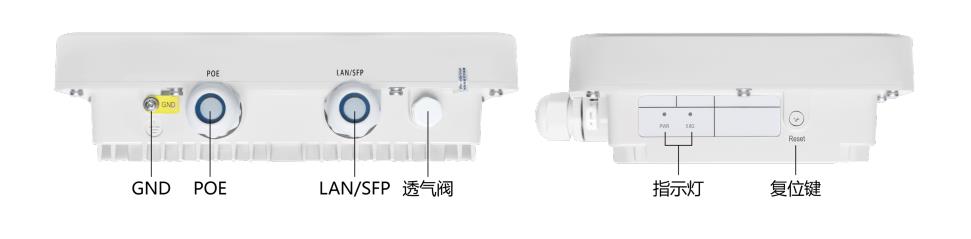

MX4011B DE29接口图示2

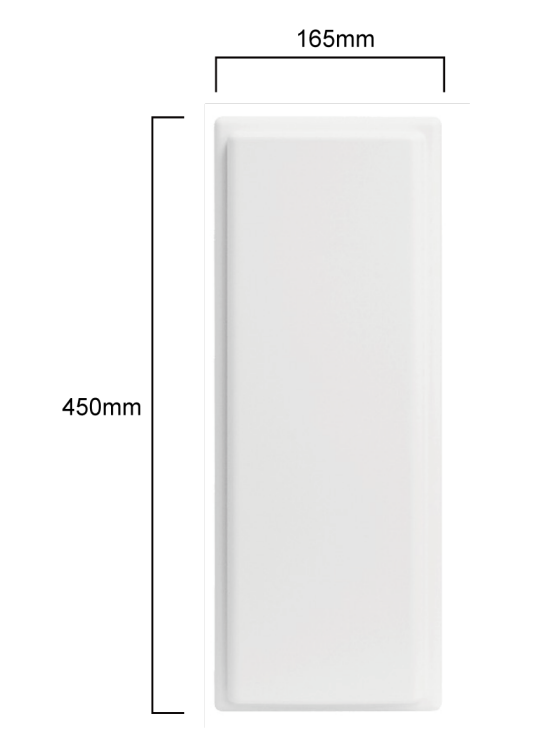

Antenna Dimension

MX6021B DE17天线尺寸

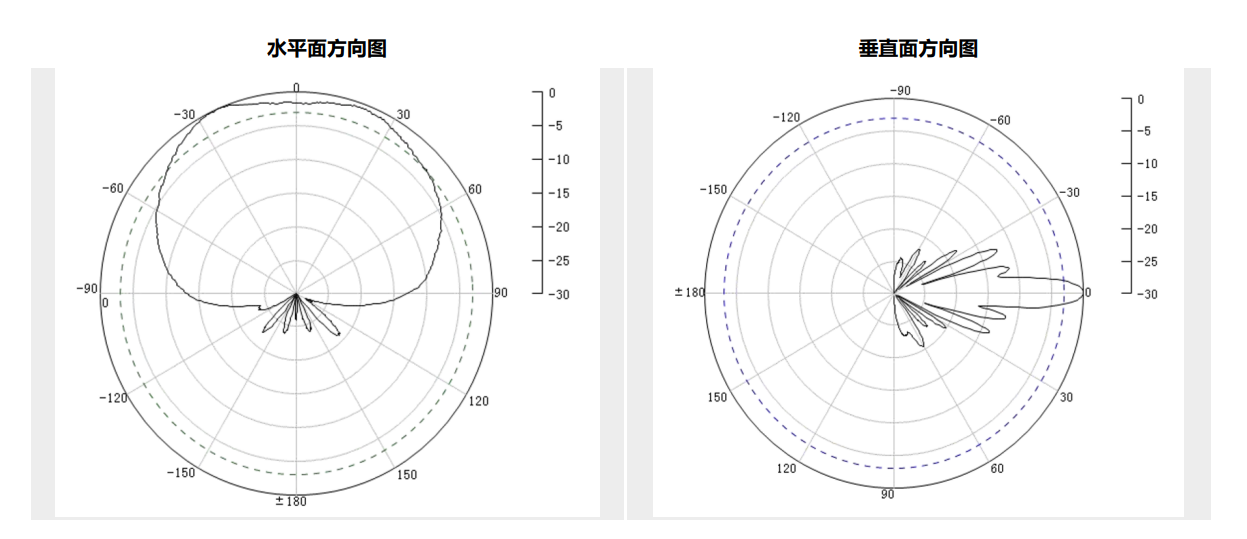

Antenna Radiation Pattern

MX6021B DE17天线辐射图
