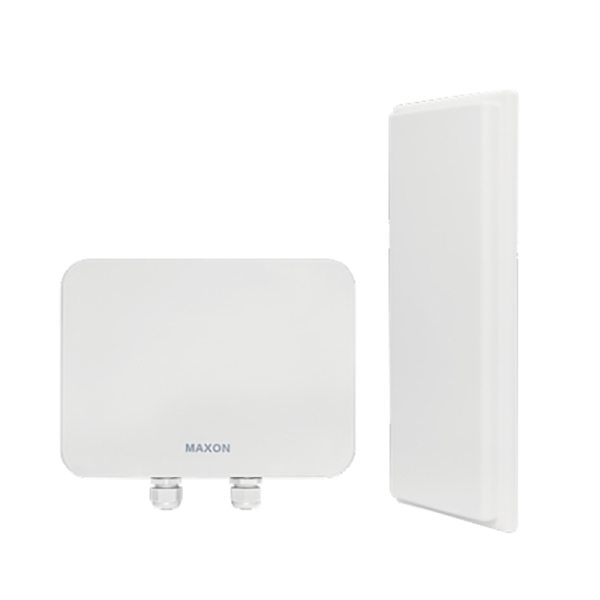

Harsh environment IP68 WiFi 5 Bridge Outdoor 10km IPC Wireless Transfer MX-5011B-DE16

Harsh environment IP68 WiFi 5 Bridge Outdoor 10km IPC Wireless Transfer MX-5011B-DE16


Category: Industrial IP68 Outdoor Wireless Bridge


Datasheet SERIES PRODUCTS contact

Description

MX-5011B-DE16 Outdoor 802.11ac Wireless Bridge (10km) supports the 802.11a/n/ac protocol, with a maximum rate of 867Mbps, optimizing the use of bandwidth and Internet speed. It can support WDS access point/WDS client working mode to meet different application requirements. It can support SFP optical port access while supporting Gigabit Ethernet port, which is flexibly applicable to different network access plans.

It can provide customers with a stable wireless signal transfer and ensure the good experience of stable, high-quality and convenient network services. It also incorporates several leading core achievements to make sure stable, reliable coverage and high-throughput performance in all scenes. Its structural design fully considers the applications in extreme industrial environments and is designed to meet the IP68 waterproof standard, making it an ideal choice for industrial-grade Wi-Fi coverage equipment.

Features

  • Support IEEE 802.11a/n/ac standard
  • Maximum transfer rate 867Mbps
  • Support intelligent QoS function, realize voice, video, and text's priority transmission through powerful text recognition, priority setting, and priority scheduling functions to meet various business needs
  • The system supports dual firmware switching between master and backup version, automatic synchronization backup of both parts, automatic detect & switch system failures function to enhance equipment stability and
  • realizing automatic recovery from system failures
  • Support web management, making equipment installation and maintenance more convenient
  • Support 802.3af Protocol (POE)
  • Support pole-mounted installationing, horizontal and vertical position adjustable
  • Support Gigabit Ethernet port/SFP, adapt to multiple types of network access
  • IP68 waterproof level is suitable for a variety of environments
  • *Wireless controller needs to be purchased separately

Specification

Hardware
Shell metal + PC
Host size (mm) 262mm*194mm*72mm
Net weight (kg) 1450g
Installation pole-mounted
Waterproof IP68
Antenna Gain 16dBi
Antenna type built-in directional antenna
Transmission distance 0~10km
Power supply mode 48V 0.5A POE
Maximum power consumption (W) 12W
Maximum transmit power 27dBm
Connector (WAN) 10/100/1000Mbps
Connector (LAN) 10/100/1000Mbps or 1000Mbps SFP
Button 1*Reset
Indicator 1*POWER, 1*system, 1*5.8G working
Working temperature -40℃~70℃/-40~158℉
Storage temperature -40℃~85℃/-40~185℉
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE:common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Mounting kit 2 x RJ45 M25 PG waterproof connector (optional SFP waterproof connector)
1 x Ceiling Mount Kit
1 x 48V 0.5A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
Software
Protocol 802.11 a/n/ac
Maximum speed 867Mbps
Frequency range 5180~5320MHz, 5745~5825MHz
Channel width 20/40/80MHz
Working Mode WDS Access Point, WDS Client
Security Configuration WPA2-PSK, Hidden SSID, IP/MAC Filtering
Application Mode WDS Access Point, WDS Client
Configuration management support web configuration, support AC remote management, support SNMP management
Ethernet software features support IPv4/IPv6 dual protocol stack;DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection;support 5GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
IoT expansion reserved UART interface to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc.
Others Scheduled restart, QoS, Watchdog
Application scenarios wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring)
Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries
Operator Main Wireless Network Construction
Wireless network coverage of rural informatization construction

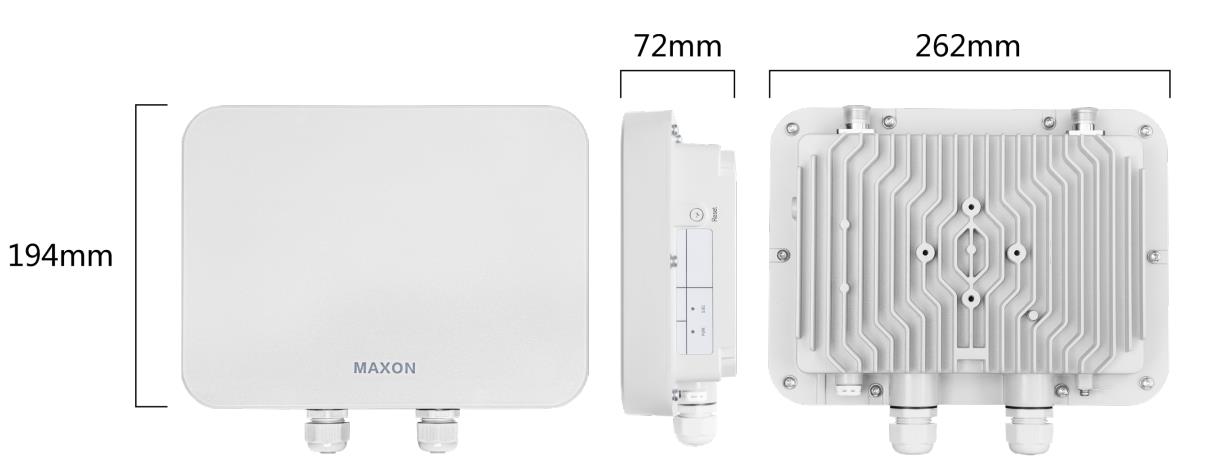

Dimensions





Connector



Antenna Radiation Pattern
