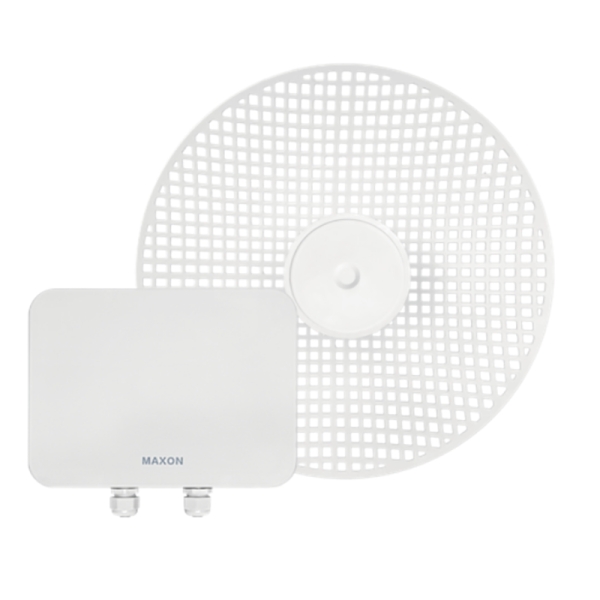

MX4011B-DE29 Wireless WIFI4 Bridge (50km)

MX4011B-DE29 Wireless WIFI4 Bridge (50km)

Category: Industrial IP68 Outdoor Wireless Bridge

Datasheet SERIES PRODUCTS contact


MX4011B-DE29 is an outdoor long-range wifi network bridge that supports IEEE 802.11a/n protocol, with a maximum transmission distance of 50km, MIMO 2*2 standard, and a maximumthroughput up to 300Mbps.

It can support multiple modes such as WDS access point, WDS client to meet different application requirements, and supports Gigabit Ethernet port, which is flexibly applicable to different network access.

Support PTP and PTMP networking, which can effectively solve network conflicts and hidden node problems under PTMP networks, greatly improve overall performance, provide stable wireless signal transmission, and ensure that customers enjoy stable, high-quality, and convenient wireless Internet service.

It integrates a number of industry-leading achievements to ensure stable, reliable transmission and high-throughput performance in various scenarios. It is suitable for application scenarios such as rural WISP, forest fire prevention, and solid edge engineering.

The design fully considers the application in harsh environments, and the design conforms to IP68 standards. It adopts an external high-gain parabolic directional antenna, which is an ideal choice for industrial-grade wireless base station bridge equipment.


  • Support 802.11a/n standard
  • 2x2 MIMO
  • Maximum throughput 300Mbps
  • Support intelligent QoS function, priority setting, priority scheduling functions to realize the priority transmission of voice, video, or specified messages to meet various business needs
  • Support 802.3at protocol (POE)
  • Pole mounted, and the horizontal and vertical adjustable
  • Support Gigabit Ethernet port, adapt to multitype network access
  • Protection level IP68, suitable for various environments
  • Antenna gain 29dBi, super longdistance transmission up to 50km


HARDWARE Shell metal + PC
Host size 262*194*72mm
Net weight 1450g
Installation pole-mounted
Protection level IP68
Antenna size Φ600mm
Antenna Gain 29dBi
Antenna type Parabolic directional antenna
Transmission distance 0~50km
HARDWARE Power supply 48V 0.5A POE
Maximum power consumption (W) 12W
Maximum transmit power 30dBm

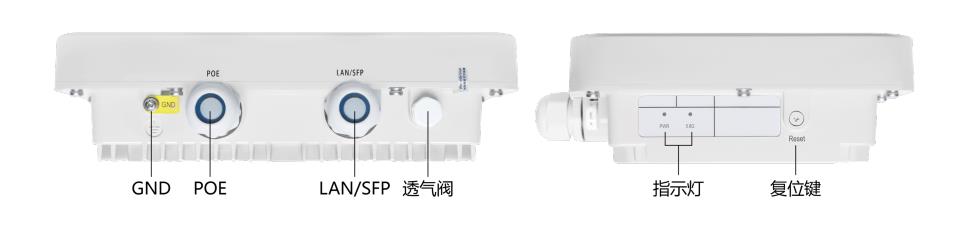

Connector (LAN) 10/100/1000Mbps or 1000Mbps SFP
Button 1*Reset
Indicator 1*POWER, 1*5.8G working
Working temperature -40~70/-40~158
Storage temperature -40~85/-40~185
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Mounting kit 2x M25 PG waterproof connectors
1x Parabolic directional antenna
1x Pole Mount Kit
1 x 48V 0.5A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
SOFTWARE Working Protocol 802.11 a/n
Maximum speed 300Mbps
Frequency range 5180~5320MHz, 5745~5825MHz
Channel width 10/20/40MHz
Working Mode WDS Access Point, WDS Client
Security Configuration WPA2-PSK, Hidden SSID, IP/MAC Filtering
Configuration management Support web configuration, support AC remote management, support SNMP management
Ethernet software features Support IPv4/IPv6 dual protocol stack
DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
SOFTWARE Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection
support 5GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
Others Scheduled restart, QoS, Watchdog
APPLICATION Wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring)
Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries
Operator Main Wireless Network Construction
Wireless network coverage of rural informatization construction

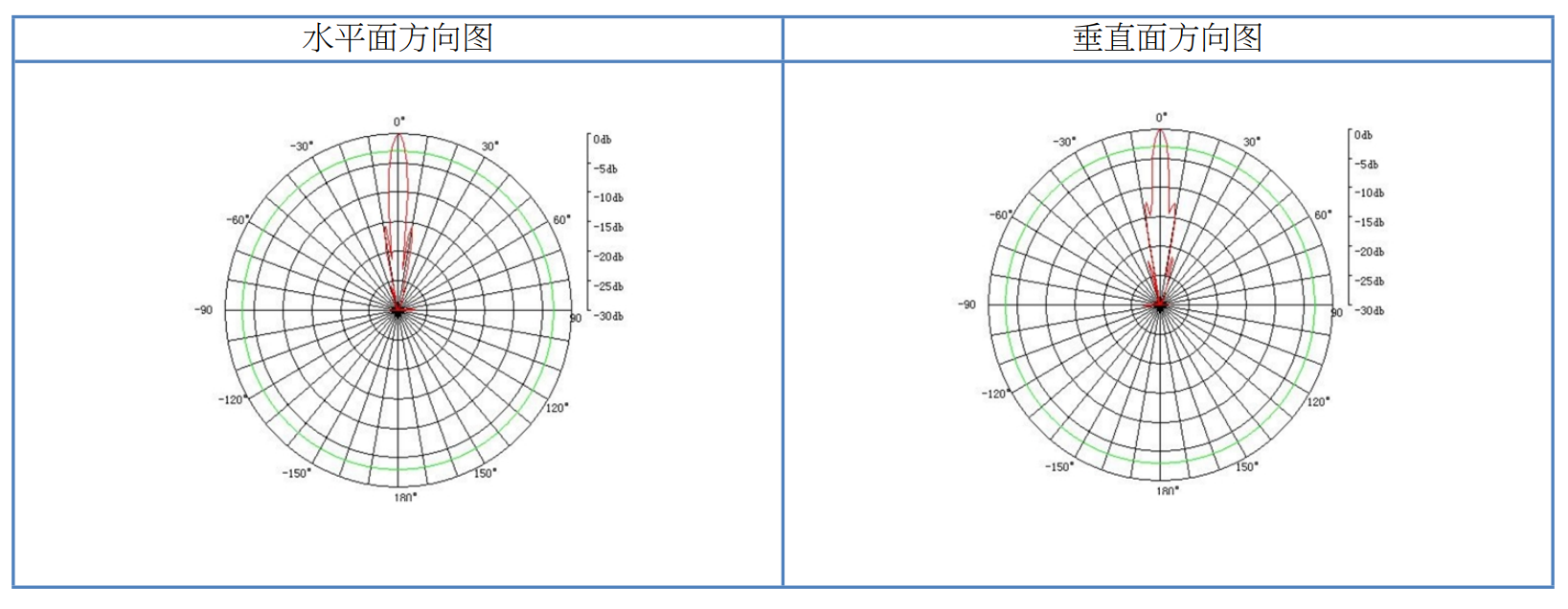

Antenna Radiation Pattern
