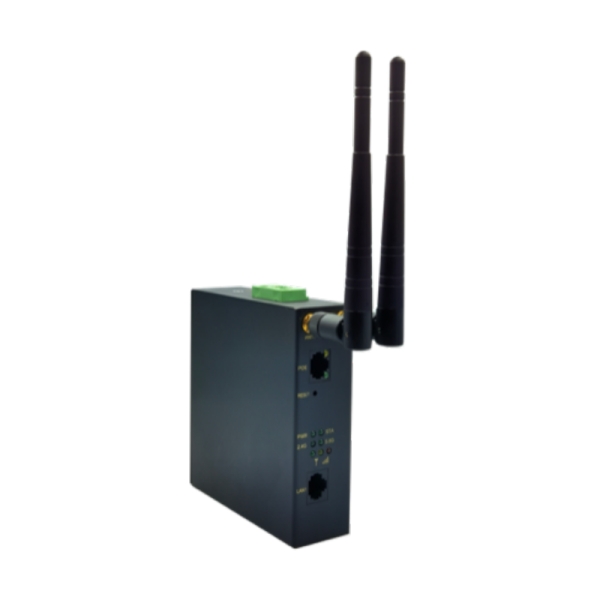

MD5012A ME5 Wireless WIFI5 Access Point (50m)

MD5012A ME5 Wireless WIFI5 Access Point (50m)


Category: Industrial Wireless Access Point


Datasheet SERIES PRODUCTS contact

Description

MD5012A-ME5 dual-band wireless access point supports IEEE 802.11a/b/g/n/ac and MIMO. The highest rate is up to 1167Mbps, the number of accesses can reach 128, supports AP/Client working modes to meet different application requirements.

It adopts POE remote power supply to make network deployment easier, and adopts Gigabit electrical port uplink to ensure wireless high-speed transmission; it is flexibly applicable to different network access schemes. It supports fat and fit AP mode to make sure it can be flexibly switched according to actual networking needs. Meanwhile, it supports wireless probe positioning function, supports seamless roaming technology, automatic detection and seamless switching to make sure users can roam without perception within the network signal coverage area.

MD5012A-ME5 can provide customers with stable wireless signal coverage to ensure that customers enjoy stable, high-quality, and convenient wireless network services; it supports point-to-point and point-to-multipoint relay bridges to achieve wireless coverage in areas where wiring is inconvenient. The product integrates several industry-leading achievements to ensure stable, reliable coverage and high-throughput performance in various scenarios.

Features

  • Support IEEE 802.11a/b/g/n/ac
  • Maximum transfer rate 300Mbps (2.4G) & 867Mbps (5.8G)
  • Support wireless bridge and routing modes, which can flexibly deploy the network by adjusting the device network mode
  • Support intelligent QoS function, through powerful message identification, priority setting, priority scheduling functions, realize the priority transmission of voice, video, or specified packets, and meet various business needs
  • Support web management, making equipment installation and maintenance more convenient
  • Support wireless controller (AC) management, realize remote centralized configuration and upgrade management
  • Support 802.3at Protocol (POE)
  • Support Din-rail installation
  • Support Gigabit Ethernet port, adapt to multi-type network access
  • Meet IP41 protection level

Specification

HARDWARE Shell Metal
Host size (mm) 120*111*36
Net weight (kg) 430g
Installation DIN-Rail
Protection class IP41
Antenna Gain 5dBi
Antenna type External omnidirectional
Transmission distance 0~100m
HARDWARE Power supply mode 48V 0.5A POE/DC 24V~48V
Maximum power consumption (W) 12W
Maximum transmit power 2.4G: 25dBm; 5.8G: 24dBm
WAN Connector 100/1000Mbps
LAN Connector 100/1000Mbps
Button 1x Reset
Indicator 1x POWER , 1x STA, 1x 2.4G, 1x 5.8G, 3x signal strength
Working temperature -40~70/-40~158
Storage temperature -40~85/-40~185
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Mounting kit 1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
SOFTWARE Protocol 802.11 a/b/g/n/ac
Maximum speed 1167Mbps
Frequency range 2.4G: 2412~2472MHz
5.8G: 5180~5320MHz, 5745~5825MHz
Channel width 20/40/80MHz
Working Mode Access Point, Client, WDS Access Point, WDS Client
Security configuration WPA2-PSK, hide SSID, IP/MAC filtering
Application Mode Access Point, Client
Configuration management support web configuration, support AC remote management, support SNMP management
Ethernet software features support IPv4/IPv6 dual protocol stack
DHCP Server/Client, DNS, HTTPS, IPv4, LLDP, Proxy ARP, SMTP, SNMP, v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
SOFTWARE Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection
support 5GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
Others Scheduled restart, QoS, Watchdog

Dimensions

MD5012A ME5 Dimensions

Antenna Radiation Pattern

2.4G horizontal pattern

MD5012A ME5 Antenna Radiation Pattern2.4a

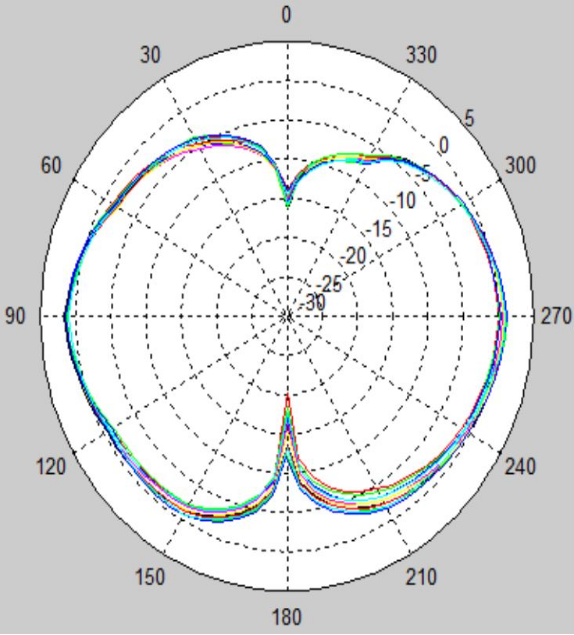

2.4G vertical pattern

MD5012A ME5 Antenna Radiation Pattern2.4b

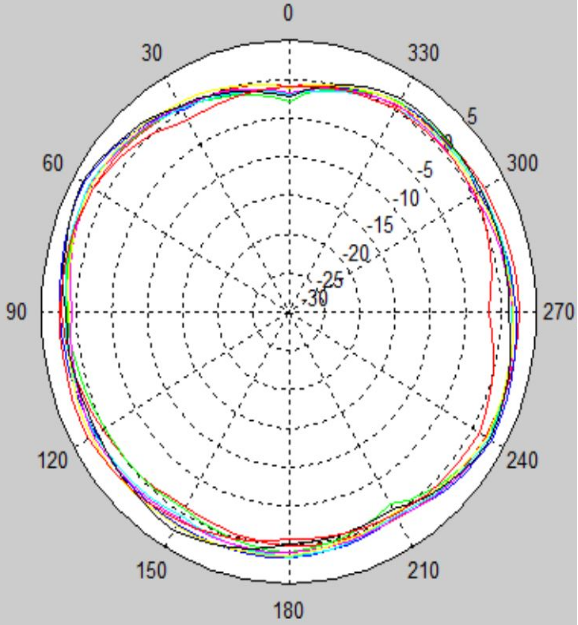

5.8G horizontal pattern

MD5012A ME5 Antenna Radiation Pattern5.8a

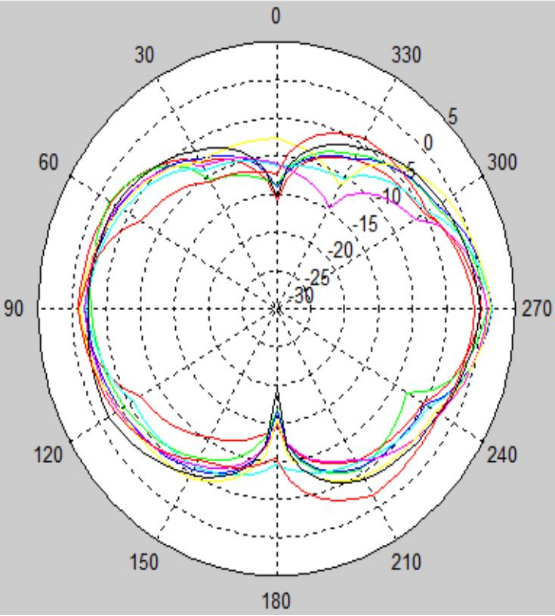

5.8G vertical pattern

MD5012A ME5 Antenna Radiation Pattern5.8b
