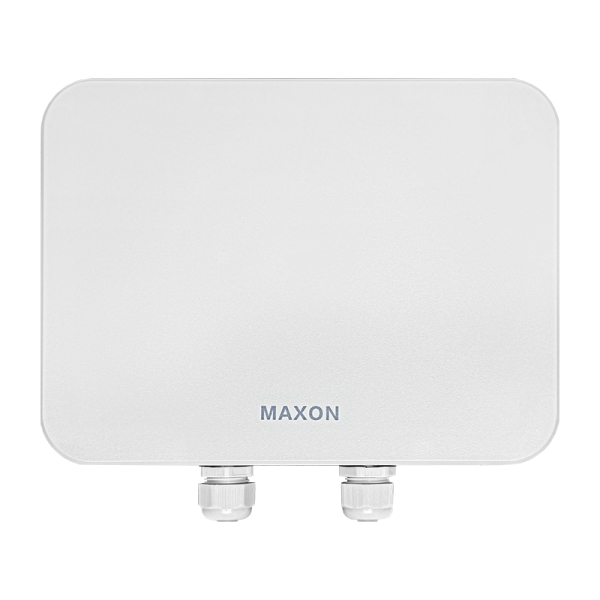

MX6021B-DI16 Wireless WiFi6 Bridge (5km)

MX6021B-DI16 Wireless WiFi6 Bridge (5km)

Category: Industrial IP68 Outdoor Wireless Bridge



MX6021B-DI16 is an outdoor long-distance wireless bridge that supports IEEE 802.11an/ac/ax protocol. The recommended distance is 0~5km, supports 2 * 2 MIMO standard, and the maximum speed is 1200Mbps. It supports multiple working modes such as WDS access point/WDS client, meets different application requirements, supports 2.5G Ethernet port, and is flexible and applicable to different uplink network access schemes. It supports point-to-point and point-to-multipoint networking, which can effectively solve network conflicts and hidden node problems in point-to-multipoint networks, significantly improve the overall network performance, provide stable wireless signal transmission, and ensure that customers enjoy stable, high-quality and convenient wireless network services.

MX6012B-DI16 can provide customers with stable wireless signal transmission and ensure that customers enjoy stable, high-quality and convenient wireless network services. The product integrates a number of industry-leading core achievements to ensure stable, reliable transmission and high throughput performance in a variety of scenarios.

MX6021B-DI16 structure design fully considers the application under harsh environment, and the design conforms to IP68 standard. It is an ideal choice for industrial Wi-Fi bridge equipment.


  • Support IEEE 802.11an/ac/ax standard
  • Maximum transmission rate 1200 Mbps
  • Support intelligent QoS function, realize the priority transmission of voice, video, or specified messages through powerful message recognition, priority setting, and priority scheduling functions, and meet various business requirements
  • Support 802.3bt protocol (POE+)
  • Support derrick installation, and the horizontal and vertical angles can be adjusted
  • Support 2.5G Ethernet port and adapt to multiple types of network access
  • The protection level reaches IP68, adapting to various environments
  • Antenna gain 16dBi, maximum transmission distance 5km


HARDWARE Shell metal + PC
Host size 262*194*72mm
Net weight 1650g
Installation pole-mounted
Protection level IP68
Antenna Gain 16dBi
Antenna type

Built-in antenna

Transmission distance 0~5km
Power supply 48V 1.25A POE
HARDWARE Maximum power consumption (W) ≤18W
Maximum transmit power 24dBm
Connector (WAN) 100/1000Mbps/2.5Gbps
Connector (LAN) 100/1000Mbps/2.5Gbps
Working temperature -40℃~70℃/-40~158℉
Storage temperature -40℃~85℃/-40~185℉
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Installation kit 1 x RJ45 M25 PG waterproof connector
1 x Mounting Bracket Kit
1 x 48V 1.25A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
SOFTWARE Working Protocol 802.11an/ac/ax
Maximum speed 2400Mbps
Frequency range 5180~5320MHz, 5745~5825MHz
Channel width 20/40/80MHz
Working Mode WDS Access Point, WDS Client
Security configuration WPA2-PSK, Hidden SSID, IP/MAC Fliter
Application Mode Access Point, Client
Configuration management Support web configuration, support SNMP management
Ethernet software features support IPv4/IPv6

Dual Stack DNS、HTTPS、IPv4、LLDP、Proxy ARP、SMTP、SNMP v2c/v3、Syslog、TCP/IP、

SOFTWARE Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection
support 5.8GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
IoT expansion reserved UART interface to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc.
Others Scheduled restart, QoS, Watchdog
APPLICATION Wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring)
Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries
Operator Main Wireless Network Construction
Wireless network coverage of rural informatization construction



MX6021B DI16产品尺寸1

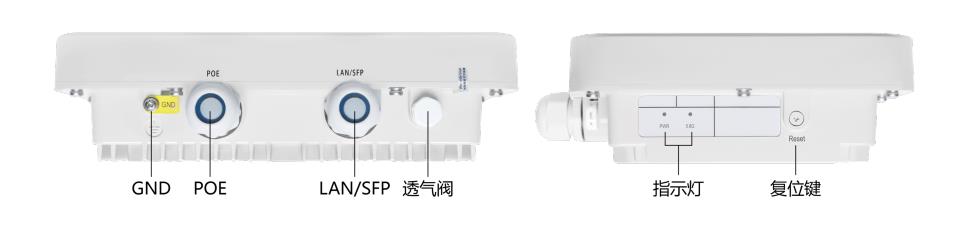

MX4011B DE29接口图示2

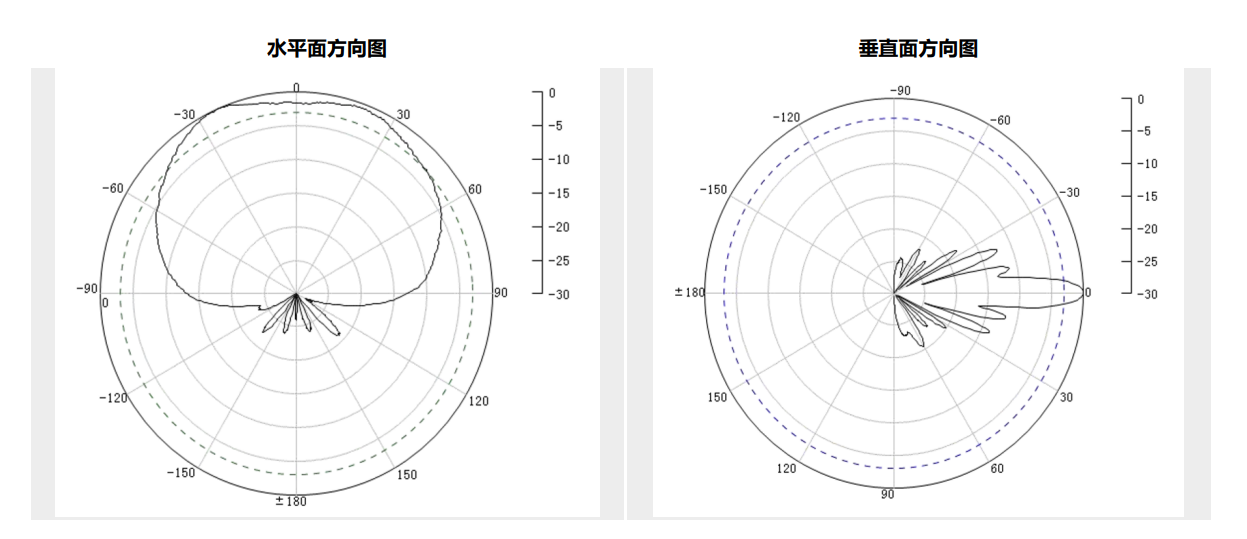

Antenna Radiation Pattern

MX6021B DE17天线辐射图
