MX520VX Qualcomm QCA9880/QCA9882 2x2 WiFi5(802.11ac) Module
MX520VX Qualcomm QCA9880/QCA9882 2x2 WiFi5(802.11ac) Module
Category: Industrial WiFi Module Series
Datasheet SERIES PRODUCTS contact
Description

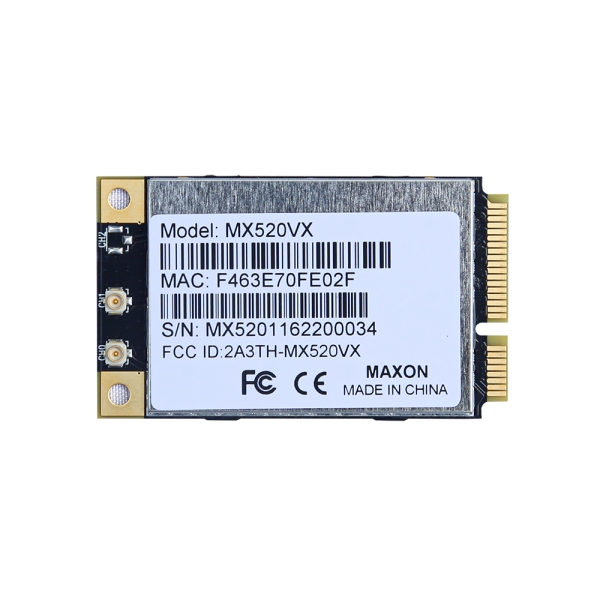

MX520VX wireless network card, designed for dual-band wireless access points, maximum output power: 2.4GHz: 21dBm&5GHz: 20dBm (per chain), Mini PCI Express connector. Compatible with IEEE 802.11ac and backward compatible with 802.11a/b/g/n/ac, chip: Qualcomm® Atheros QCA9880.
Features
- Specifically designed for dual-band wireless access points
- Qualcomm® Atheros QCA9880/QCA9882
- Maximum output power: 2.4GHz: 21dBm , 5GHz: 20dBm (per chain)
- Compatible with WiFi 5 802.11ac and backward compatible with 802.11a/b/g/n/ac
- 2x2 MIMO, rate up to 867Mbps
- Mini PCI Express connector
- Supports Spatial Multiplexing, Cyclic Delay Diversity (CDD), Low-Density Parity Check (LDPC) codes, Maximum Ratio Combining (MRC), Space Time Block Code (STBC)
- Supports IEEE 802.11d, e, h, i, k, r, v timestamp and w standards
- Support Dynamic Frequency Selection (DFS)
- Cards are individually calibrated for the guaranteed quality
Applications
- Security Surveillance
- Hotel WiFi Solution
- Outdoor WiFi Network
- Enterprise Wireless
- Private Networks
- Industrial IoT
Specification
| Parameter | Description |
|---|---|
| Chip | Qualcomm QCA9880/QCA9882 |
| Reference Design | XB140-020 |
| Host Connector | Mini PCI Express 1.1 standard |
| Working Voltage | 3.3V DC |
| Antenna Connector | 2 x U.FL |
| Frequency Range | Optional dual-band: 2.4GHz: 2.412GHz ~ 2.472GHz or 5GHz: 5.150GHz ~ 5.825GHz |
| Certifications | FCC & CE certification, REACH & RoHS compliance |
| Maximum Power Consumption | 3.5W |
| Supported Operating Systems | Qualcomm® Atheros Wireless LAN Driver or OpenWrt/LEDE with ath10k wireless driver |
| Modulation Methods | OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM |
| Ambient Temperature | Operating: -20°C ~ 70°C (-4 ~ 158°F) Storage: -40°C ~ 90°C (-40 ~ 130°F) |
| Ambient Humidity (non-condensing) | Operating: 5% ~ 95% Storage: max 90% |
| ESD Sensitivity Classification | 1C |
| Dimensions (L×W×H) | 50.9mm × 30.0mm × 3.2mm |
Connector Map
Mechanical Dimensions
