ME6922 FD Qualcomm QCN9024 2x2 MIMO Wifi6(802.11ax) Module
ME6922 FD Qualcomm QCN9024 2x2 MIMO Wifi6(802.11ax) Module
Category: Industrial WiFi Module Series
Datasheet SERIES PRODUCTS contact
Description

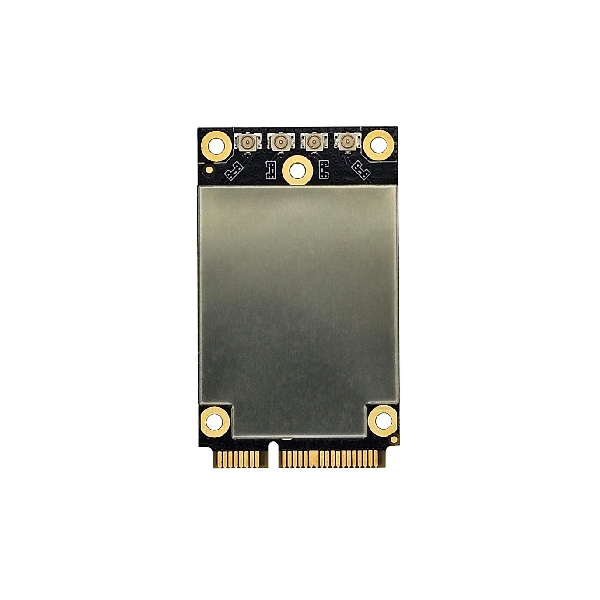

ME6922 FD is an embedded wireless module with Mini-PCIe interface.It adopts Qualcomm QCN9024 chip, conformsto 802.11ax Wi-Fi 6 standard,supports AP and STA functions, and has 2x2 MIMO and 2 spatialstreams at the same time, the maximumthroughput of 2.4G is 574Mbps, of 5G is 2400Mbps.
The transmissionefficiency is higherthan that of the previous generation of wireless network cards, and it has the function of dynamic frequency selection (DFS).
Features
- WiFi 6 802.11ax;
- Qualcomm QCN9024 chip for Industrial grade;
- DBDC, Dual-Band,Dual-Concurrent;
- 2.4GHz, 2×2 MU-MIMO, up to 574Mbps physical data rate;
- 5GHz, 2×2 MU-MIMO, up to 2400Mbps physical data rate;
- MiniPCIe Interface with PCIe 3.0;
- Wide temperature range: -20 °C to 70 °C
Applications
- Security Surveillance
- Hotel WiFi Solution
- Outdoor WiFi Network
- Enterprise Wireless
- Private Networks
- Industrial IoT
Specification
| CHIP | QCN9024 |
| IEEE STANDARD | IEEE 802.11ax |
| Interface | MINI PCIE(PCI Express 3.0) |
| working voltage | 3.3V |
| frequency range | 2.4GHz: 2.412~2.472GHz;5GHz: 5180~5320GHz,5745~5825GHz |
| modulation technique | OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Output power (single channel) | 2.4GHz 802.11b/g/n/ax: Max. 20dBm; 5GHz 802.11a/an/ac/ax:Max.19dBm |
| power waste | ≤6.8W |
| BANDWIDTH | 2.4G: 20/40MHz; 5G: 20/40/80/160MH |
| Receiving sensitivity | 11ax: HE20 MCS0 <-95dBm / MCS11 <-62dBm HE40 MCS0 <-89dBm / MCS11 <-60dBm HE80 MCS0 <-86dBm / MCS11 <-56dBm HE160 MCS0 <-87dBm / MCS9 <-64dBm |
| Antenna interface | 2 x U. FL |
| work environment | Temperature:-20°C to 70°C / Humidity: 95% (non-condensing） |
| Storage environment | Temperature:-40°C to 90°C / Humidity: 90% (non-condensing） |
| CERTIFIED | REACH & RoHS compliance |
| weight | 17g |
