MX7000, Qualcomm QCN9274/QCN6274,WiFi 7 802.11be Module,PCI Express 3.0,4×4 MIMO
MX7000, Qualcomm QCN9274/QCN6274,WiFi 7 802.11be Module,PCI Express 3.0,4×4 MIMO
Category: Industrial WiFi Module Series
contact
Description

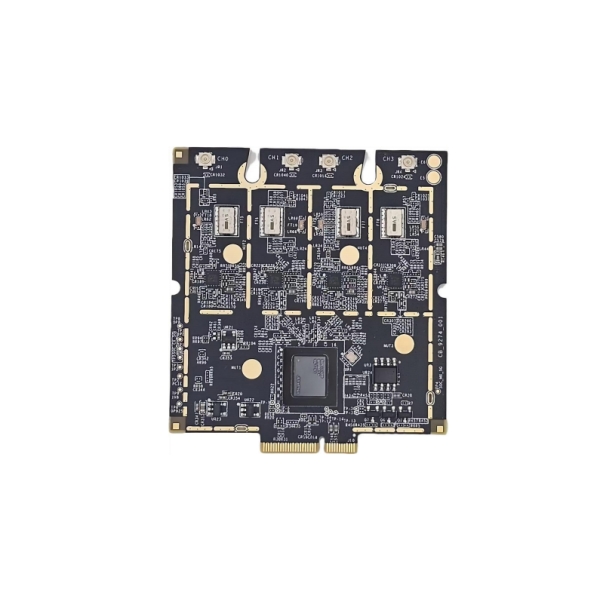

The MX7000 series is an advanced embedded Wi-Fi 7 802.11be wireless network card featuring an M.2 E-key interface and supporting the PCI Express 3.0 protocol. Designed specifically for demanding environments, this industrial wireless module delivers unparalleled connectivity and reliability.
It simultaneously supports the 2.4GHz band and the 5180-5850MHz (5GHz) or 6E (6GHz) bands. Equipped with both Access Point (AP) and Station (STA) functionalities, the MX7000 series is engineered to meet the rigorous demands of modern industrial IoT applications.It also features Dynamic Frequency Selection (DFS).
Key Features
- WiFi 7 802.11be
- Qualcomm QCN6274 for Commercial grade;
- Qualcomm QCN9274 for Industrial grade;
- DBDC, Dual-Band Dual-Concurrent;
- 2.4GHz, 4×4 MU-MIMO, up to 1376 Mbps physical data rate;
- 5GHz, 4×4 MU-MIMO, up to 8647 Mbps physical data rate;
- 6GHz, 4×4 MU-MIMO, up to 11530 Mbps physical data rate;
- MiniPCIe Interface with PCIe 3.0;
- Wide temperature range: -20 °C to 70 °C, -40°C ~85°C（QCN9274）
Applications
- Security Surveillance
- Hotel WiFi Solution
- Outdoor WiFi Network
- Enterprise Wireless
- Private Networks
- Industrial IoT
Specifications
|
Product Type |
Industrial Wireless Module |
|
Chipset |
Qualcomm QCN9274, Qualcomm QCN6274 |
|
IEEE Standard |
WiFi 7 802.11BE |
|
Interface |
PCI Express 3.0,M.2 E-key |
|
Operating Voltage |
5V |
|
Frequency Range |
5GHz:5180~5320GHz,5745~5825GHz, |
|
Modulation Technology |
OFDMA（BPSK,QPSK,DBPSK,DQPSK,16-QAM,64-QAM,256-QAM,1024-QAM,4096-QAM） |
|
Output Power (Per Channel) |
Max. 22dBm |
|
Power Consumption |
≦14W |
|
Bandwidth |
Supports 20/40/80/160/240MHz at 5GHz |
|
Antenna Connector |
4 x U. FL |
|
Operating Temperature |
-20°C to 70°C,-40°C ~85°C（QCN9274） |
|
Operation Humidity |
95% (no condensation) |
|
Storage Environment |
-40°C to 90°C |
|
Storage Humidity |
90% (no condensation) |
|
Certifications |
RoHS/REACH |
|
Weight |
18 grams |
|
Dimensions (WHD) |
63 × 57 × 4mm (tolerance ± 0.1mm) without radiator |
RF Parameter
|
Operating Mode |
Data Rate |
TX Power（per Chain） |
Tolerance |
RX Specifications Sensitivity |
Tolerance |
|
5GHz 802.11be EHT20 |
MCS0 |
22dBm |
±2dB |
-96dBm |
±2dB |
|
MCS1 |
22dBm |
±2dB |
-93dBm |
±2dB |
|
|
MCS2 |
22dBm |
±2dB |
-91dBm |
±2dB |
|
|
MCS3 |
22dBm |
±2dB |
-87dBm |
±2dB |
|
|
MCS4 |
22dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS5 |
22dBm |
±2dB |
-80dBm |
±2dB |
|
|
MCS6 |
21dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS7 |
21dBm |
±2dB |
-77dBm |
±2dB |
|
|
MSC8 |
20dBm |
±2dB |
-73dBm |
±2dB |
|
|
MCS9 |
20dBm |
±2dB |
-70dBm |
±2dB |
|
|
MCS10 |
19dBm |
±2dB |
-67dBm |
±2dB |
|
|
MCS11 |
19dBm |
±2dB |
-64dBm |
±2dB |
|
|
MCS12 |
18dBm |
±2dB |
-61dBm |
±2dB |
|
|
MCS13 |
18dBm |
±2dB |
-58dBm |
±2dB |
|
|
5GHz 802.11be ETH40 |
MCS0 |
22dBm |
±2dB |
-93dBm |
±2dB |
|
MCS1 |
22dBm |
±2dB |
-91dBm |
±2dB |
|
|
MCS2 |
22dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS3 |
22dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS4 |
22dBm |
±2dB |
-82dBm |
±2dB |
|
|
MCS5 |
22dBm |
±2dB |
-78dBm |
±2dB |
|
|
MCS6 |
21dBm |
±2dB |
-76dBm |
±2dB |
|
|
MCS7 |
21dBm |
±2dB |
-75dBm |
±2dB |
|
|
MSC8 |
20dBm |
±2dB |
-71dBm |
±2dB |
|
|
MCS9 |
20dBm |
±2dB |
-68dBm |
±2dB |
|
|
MCS10 |
19dBm |
±2dB |
-64dBm |
±2dB |
|
|
MCS11 |
19dBm |
±2dB |
-61dBm |
±2dB |
|
|
MCS12 |
18dBm |
±2dB |
-59dBm |
±2dB |
|
|
MCS13 |
18dBm |
±2dB |
-56dBm |
±2dB |
|
|
5GHz 802.11be ETH80 |
MCS0 |
22dBm |
±2dB |
-90dBm |
±2dB |
|
MCS1 |
22dBm |
±2dB |
-88dBm |
±2dB |
|
|
MCS2 |
22dBm |
±2dB |
-85dBm |
±2dB |
|
|
MCS3 |
22dBm |
±2dB |
-82dBm |
±2dB |
|
|
MCS4 |
22dBm |
±2dB |
-79dBm |
±2dB |
|
|
MCS5 |
22dBm |
±2dB |
-75dBm |
±2dB |
|
|
MCS6 |
21dBm |
±2dB |
-73dBm |
±2dB |
|
|
MCS7 |
21dBm |
±2dB |
-71dBm |
±2dB |
|
|
MSC8 |
20dBm |
±2dB |
-67dBm |
±2dB |
|
|
MCS9 |
20dBm |
±2dB |
-65dBm |
±2dB |
|
|
MCS10 |
19dBm |
±2dB |
-61dBm |
±2dB |
|
|
MCS11 |
19dBm |
±2dB |
-59dBm |
±2dB |
|
|
MCS12 |
18dBm |
±2dB |
-55dBm |
±2dB |
|
|
MCS13 |
18dBm |
±2dB |
-52dBm |
±2dB |
|
|
5GHz 802.11be ETH160 |
MCS0 |
22dBm |
±2dB |
-88dBm |
±2dB |
|
MCS1 |
22dBm |
±2dB |
-84dBm |
±2dB |
|
|
MCS2 |
22dBm |
±2dB |
-82dBm |
±2dB |
|
|
MCS3 |
22dBm |
±2dB |
-79dBm |
±2dB |
|
|
MCS4 |
22dBm |
±2dB |
-76dBm |
±2dB |
|
|
MCS5 |
22dBm |
±2dB |
-72dBm |
±2dB |
|
|
MCS6 |
21dBm |
±2dB |
-70dBm |
±2dB |
|
|
MCS7 |
21dBm |
±2dB |
-68dBm |
±2dB |
|
|
MSC8 |
20dBm |
±2dB |
-64dBm |
±2dB |
|
|
MCS9 |
20dBm |
±2dB |
-58dBm |
±2dB |
|
|
MCS10 |
19dBm |
±2dB |
-55dBm |
±2dB |
|
|
MCS11 |
19dBm |
±2dB |
-23dBm |
±2dB |
|
|
MCS12 |
18dBm |
±2dB |
-83dBm |
±2dB |
|
|
MCS13 |
18dBm |
±2dB |
-50dBm |
±2dB |
Version
|
Model |
Description |
|
MX7000F5 |
WiFi 7 802.11be; Industrial Wireless network card; 5GHz, 4×4 MU-MIMO, up to 8647 Mbps physical data rate; |
|
MX7000F6 |
WiFi 7 802.11be; Industrial Wireless network card; 6GHz, 4×4 MU-MIMO, up to 11530 Mbps physical data rate; |
|
MX7000FD25 |
WiFi 7 802.11be; Industrial Wireless network card; DBDC, Dual-Band Dual-Concurrent;; 20/40MHz at2.4GHz, up to 1376 Mbps physical data rate; 20/40/80/160MHz at 5GHz, up to 5765 Mbps physical data rate; |
