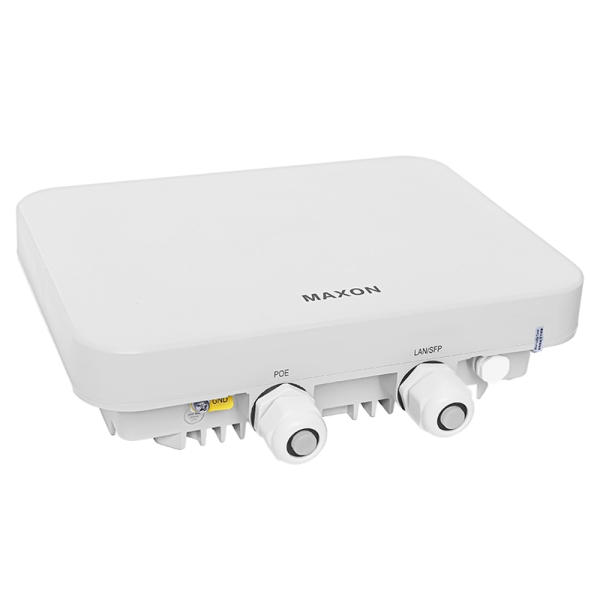

Outdoor WiFi 6 Access Point 12dBi Wireless coverage up to 300m MX6022A-DI12

Outdoor WiFi 6 Access Point 12dBi Wireless coverage up to 300m MX6022A-DI12


Category: Industrial Wireless Access Point


Datasheet SERIES PRODUCTS contact

Description

MX6022A-DI12 Outdoor WiFi6 High Performance Wireless Access Point supports the IEEE 802.11g/n/ac/ax protocol with a maximum rate of 1773.5Mbps, optimized bandwidth and network speed. Able to support multiple working modes of AP/Client to meet different application requirements.

It can be flexibly applied to different network access plans and supports wireless positioning functions to meet the requirements of underground pipelines, factories, industrial parks and related areas for smart wireless coverage. It supports seamless roaming technology with automatic detection and seamless switching to ensure users can enjoy the feelingless roaming under the signal coverage.

It can provide customers with a stable full-area outdoor wireless signal and ensure the good experience of stable, high-quality and convenient network services. It also incorporates several leading core achievements to make sure stable, reliable coverage and high-throughput performance in all scenes.

Its structural design fully considers the applications in extreme industrial environments and is designed to meet the IP68 waterproof standard, making it an ideal choice for industrial-grade Wi-Fi coverage equipment.

Features

  • Support IEEE 802.11g/n/ac/ax standard
  • Maximum transfer rate 573.5Mbps (2.4G) & 1200Mbps (5.8G)
  • Support wireless bridge and routing modes, which can flexibly deploy the network by adjusting the device network mode
  • Support intelligent QoS function, realize voice, video, and text's priority transmission through powerful text recognition, priority setting, and priority scheduling functions to meet various business needs
  • The system supports dual firmware switching between master and backup version, automatic synchronization backup of both parts, automatic detect & switch system failures function to enhance equipment stability and
  • realizing automatic recovery from system failures
  • Support web management, making equipment installation and maintenance more convenient
  • Support wireless controller (AC) management, realize remote centralized configuration and upgrade management
  • Support 802.3af Protocol (POE)
  • Support ceiling-mounted and pole-mounted installation, suitable for installation in different area
  • The IP68 waterproof level ensure it can be suitable for a variety of environments
  • *Wireless controller needs to be purchased separately

Specification

Hardware
Shell metal + PC
Host size (mm) 262mm*194mm*72mm
Net weight (kg) 1450g
Installation method ceiling installation (standard), pole-mounted installation (optional)
Protection class IP68
Antenna Gain 12dBi
Antenna type built-in dual-frequency directional antenna
Power supply mode 48V 1.25A POE
Maximum power consumption (W) ≤30W
Maximum transmit power 26dBm
Connector (WAN) 10/100/1000Mbps/2.5Gbps
Working temperature -40℃~70℃/-40~158℉
Storage temperature -40℃~85℃/-40~185℉
Working humidity 5%~95%RH non-condensing
Surge immunity POE/GE: common mode 4KV, differential mode 2KV
Electrostatic discharge immunity Contact discharge: 6KV, Air discharge: 8KV
Mounting kit 2 x RJ45 M22 PG waterproof connector (optional SFP waterproof connector)
1 x Mounting Kit
1 x 48V 1.25A POE Adapter
1 x AC Power Cord
1 x Product Instruction Manual
1 x Product Certificate & Warranty Card
Software
Protocol 802.11g/n/ac/ax
Maximum speed 1773.5Mbps
Frequency range 2.4G: 2412~2472MHz;5.8G:5180~5320MHz, 5745~5825MHz
Channel width 20/40/80MHz
Working Mode WDS Access Point, WDS Client
Security configuration WPA2-PSK, WPA3-SAE
Application Mode WDS Access Point, WDS Client
Configuration management support web configuration, support AC remote management, support SNMP management
Ethernet software features support IPv4/IPv6 dual protocol stack;DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN
Dynamic frequency selection support intelligent channel analysis & automatic optimal channel selection
support 5.8GHz DFS
Intelligent Bandwidth Rate Limiting Support IP and MAC-based upstream and downstream rate limiting
IoT expansion reserved UART interface to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc.
Others Scheduled restart, QoS, Watchdog
Application wireless video surveillance (traffic, urban, public security, oil and gas pipelines, forest fire prevention and security, residential and other key areas monitoring)
Wireless video/data transmission and wireless coverage in railway, transportation, power and other industries
Operator Main Wireless Network Construction
Wireless network coverage of rural informatization construction

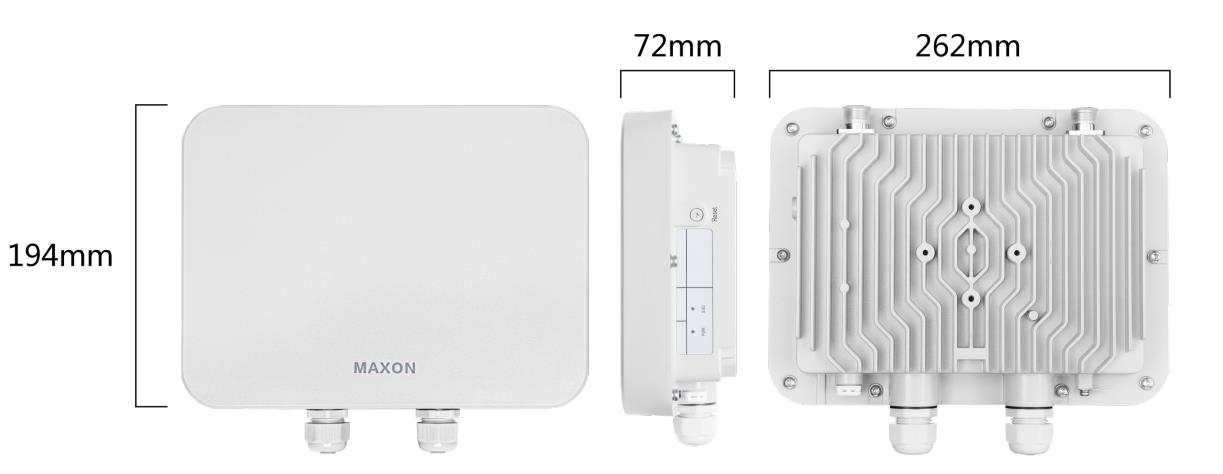

Dimensions

MX6022A-ME8 dimensions

Connector

connector

Antenna Radiation Pattern

Antenna Radiation Pattern

Antenna Radiation Pattern
