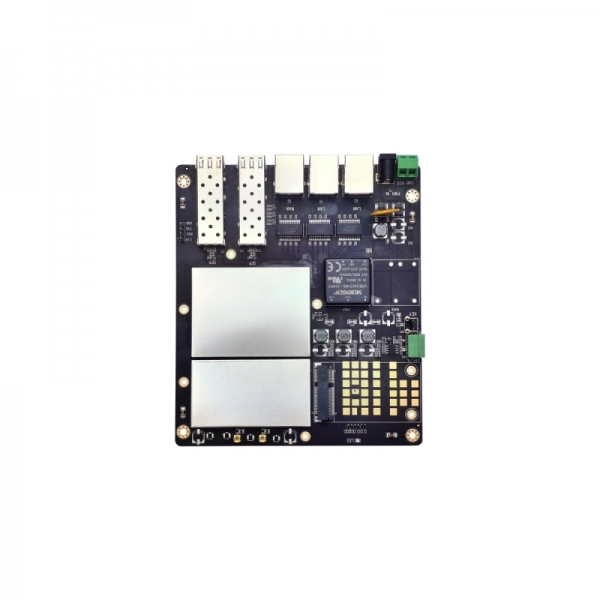

MX6012-IS 802.11ax Intrinsic Safety Dual-Band Wireless Access Point Board

Description

MX6012-IS WiFi6 intrinsic safety Dual-Band Wireless Access Point Board supports the IEEE 802.11a/b/g/n/ac/ax protocol with a maximum rate of 1773.5Mbps. It has M-Pcie (USB3.0) interface, Easy access to 5G/4G cellular modules. Support multiple working modes of AP/Client/Mesh to meet different application requirements. It is flexibly suitable for different network access schemes, supports wireless positioning function, supports 802.11 kvr seamless roaming technology, automatically detects and seamlessly switches, and users can roam without perception within the coverage of network signals. MX6012-IS provides3* 1Gbps ethernet RJ45 Port and 2* 1Gbps SFP 2.4G/5.8G dual-band combined antenna ports, which support access to various types of antennas. The protection design of power supply and interface allows the MX6012-IS to provide a stable and reliable wireless network in highly hazardous areas.

Features

• Chipset: Qualcomm IPQ6010+QCA8075+QCN5052+QCN5022
• Dual-band WiFi 6 (802.11ax)
• 5 GHz (2x2MU-MIMO) band with a 1200Mbps throughput rate
• 2.4 GHz (2x2 MIMO) band with a 573.5 Mbps throughput rate
• Support access point, client, WDS access point, WDS client mode
• Support 2×2MIMO, dual-band combined MMCX connector
• Extended Interfaces: UART / RS-485 / 4G / 5G Cellular
• Includ 3* 1Gbps ethernet RJ45 Port and 2* 1Gbps SFP
• Intrinsic Safety Power Design: under-voltage, short-circuit, over-current, over-voltage, reverse-polarity protection.
• Power Supply: DC or 2-PIN 5.08mm pitch terminals, wide voltage range 9~36V (meets intrinsic safety requirements).
• Power Consumption:≤15W (WiFi), ≤18W (with 5G)
• Support AC management
• Intrinsic Safety Certified : for explosive gas and dust environments (oil & gas, chemical, mining).

SpecificationTechnical Parameters
