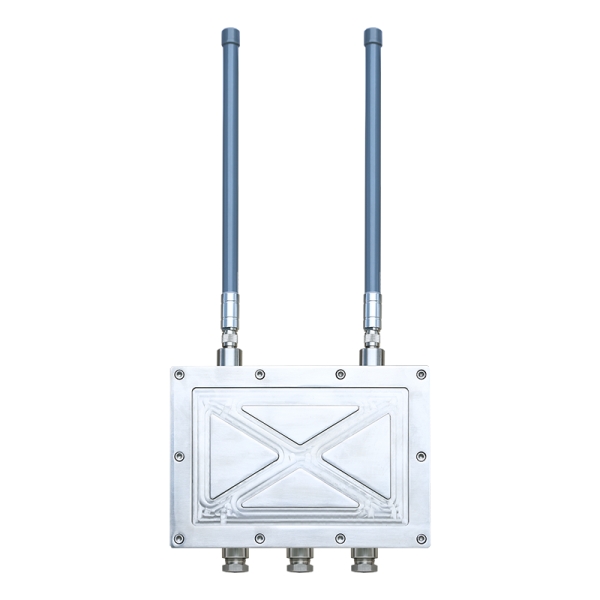

MX821-1F | Zone 1 Explosion-Proof WiFi 6 AP | 1773Mbps 2×2 MIMO | IP68 Ex db IIB T6
MX821-1F | Zone 1 Explosion-Proof WiFi 6 AP | 1773Mbps 2×2 MIMO | IP68 Ex db IIB T6
Category: Explosion-Proof Wireless Access Point
Datasheet SERIES PRODUCTS contact
Description
MX821-1F is a Zone 1 explosion-proof WiFi 6 (802.11ax) industrial access point certified to GB/T 3836 Exd IIB T6 Gb / Ex tD A21 IP68 T80℃ for use in gas and dust explosive atmospheres. Delivering 1773.5Mbps dual-band concurrent throughput (573.5Mbps @ 2.4GHz + 1200Mbps @ 5GHz) with 2×2 MU-MIMO, it outperforms legacy WiFi 5 ATEX solutions by up to 3× in bandwidth efficiency and device density.
Designed for oil & gas refineries, chemical plants, underground mining, pharmaceutical facilities, and smart factories, the MX821-1F supports AP / Client / WDS AP / WDS Client modes with 802.11k/v/r fast roaming and wireless positioning for personnel tracking, AGV navigation, and IoT sensor networks. Its SUS304 stainless steel enclosure and IP68 sealing withstand corrosive chemicals, high-pressure washdown, and immersion in harsh industrial environments.
With 2.5Gbps SFP fiber uplink, PoE++ (802.3bt) power, and centralized AC management, the MX821-1F provides enterprise-grade wireless infrastructure for mission-critical hazardous area deployments.
Features
- Wireless Standard: WiFi 6 (802.11ax)
- Dual-Band Throughput: 1773.5Mbps total , 573.5Mbps @ 2.4GHz + 1200Mbps @ 5GHz
- MIMO & FEM: 2×2 MU-MIMO with external Qorvo QPF4588A (5GHz) + QPF4288A (2.4GHz) FEM
- Operating Modes: Access Point / Client / WDS AP / WDS Client
- Roaming (<50 ms)
-
- Dual-Link Access Point Redundancy: Dual active-link roaming with pre-authenticated secondary AP. Client enters new AP range → instant traffic shift. No probe, no wait, no perceptible switchover.
- Cellular-WiFi Convergence: 4G/5G backup with automatic traffic steering
- 802.11k/v/r: Standard fast roaming for legacy client compatibility
- Positioning: Wireless probe mode with positioning server docking for underground tunnel navigation and factory asset tracking
- Wired Connectivity: 1× 2.5Gbps RJ45 (WAN) + 1× 2.5Gbps RJ45/SFP combo (LAN)
- Power: PoE++ (802.3bt) 48V 1.25A; wide voltage 9-36VDC optional
- Management: Web UI, AC centralized management, SNMP v2c/v3, SSH
- IoT Expansion: Reserved UART for Bluetooth, ZigBee, UWB module integration
- Enclosure: SUS304 stainless steel, IP68
- Wide temperature range: -40°C to +80°C operating; -40°C to +85°C storage
- Mounting: Wall-mount, ceiling-mount, or pole-mount compatible
Explosion Safety Specifications (GB/T 3836)
| Standard | GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.31-2021 |
| Gas marking | Ex db IIB T6 Gb |
| Dust marking | Ex tb IIIC T80℃ Db |
| Equipment protection level (EPL) | Ga (Zone 1/2 gas) / Da (Zone 21/22 dust) |
| Applicable zones | Zone 1, Zone 2 (gas) / Zone 21, Zone 22 (dust) |
Specifications
| Hardware Specifications | |
| Antenna | dual frequency omnidirectional antenna |
| Transmission distance | 0~200m |
| Power supply | 48V1.25APOE |
| Maximum power consumption | (W)≤35W |
| Maximum transmit power | 2G:23dBm; 5G: 23dBm |
| Connector (WAN) | 10/100/1000Mbps/2.5Gbps |
| Connector (LAN) | 10/100/1000Mbps/2.5Gbps or 2.5Gbps SFP |
| Indicator | network port indicator |
| Working temperature | -40℃~80℃/ -40 ~ 176℉ |
| Storage temperature | -40℃~85℃/ -40 ~ 185℉ |
| Working humidity | 5%~95%RH non-condensing |
| Surge immunity | POE/GE :common mode 4KV, differential mode 2KV |
| Electrostatic discharge immunity | Contact discharge: 6KV, Air discharge: 8KV |
| Mounting Kit | 1x Mounting Expansion Screw Pack |
| 1x Outer Hex Tool | |
| 6x dual-band omnidirectional antenna | |
| 1x48V1.25APOE adapter | |
| 1xAC power cord | |
| 1x Product Instruction Manual | |
| 1x Product Certificate & Warranty Card | |
| Software Details | |
| Protocol | 802.11g/gn/an/ac/ax |
| Maximum speed | 6573.5Mbps |
| Frequency range | 2G: 2412~2472MHz; 5G: 5180~5320MHz, 5745~5825MHz |
| Channel width | 20/40/80/160MHz |
| Working Mode | Access Point, Client, WDS Access Point, WDS Client |
| Security Configuration | WPA2-PSK, Hidden SSID, IP/MAC Filtering |
| Application mode | AP, Client |
| Configuration | support web configuration, support AC remote management, support SNMP management |
| Ethernet software | support IPv4/IPv6 dual protocol stack DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMP v2c/v3, Syslog, TCP/IP, SSH, UDP, VLAN |
| Dynamic frequency selection | support intelligent channel analysis & automatic optimal channel selection, support 5GHz DFS |
| Intelligent bandwidth rate limit | support uplink and downlink rate limit based on IP and MAC |
| IoT expansion | reserved UART connector to support IoT application expansion such as Bluetooth, ZigBee, UWB, etc. |
| Positioning service | supports wireless probe, docking with positioning server, which can meet the positioning requirements in scenarios such as smart underground pipelines, factories, etc. |
| Others | Scheduled restart, QoS, Watchdog |
