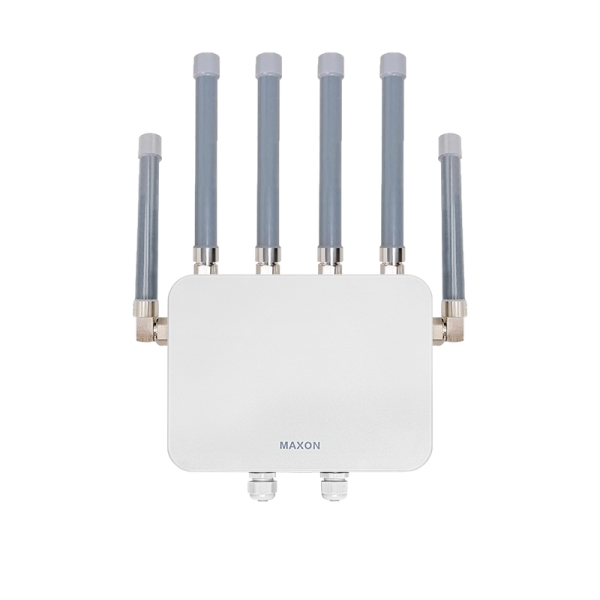

Industrial IP68 WiFi 6 Tri-band Wireless Access Point with 8dBi antenna 150m MX6023A-ME8

Industrial IP68 WiFi 6 Tri-band Wireless Access Point with 8dBi antenna 150m MX6023A-ME8


Category: Industrial Wireless Access Point


Datasheet SERIES PRODUCTS contact

Description

MX6023A-ME8 Tri-Band Outdoor WiFi6 High Performance Wireless Access Point supports IEEE 802.11 a, b, g, n, ac, ax tri-band concurrent, using 4x4 MIMO technology, the transmission rate can reach 6573Mbps, Supports point-to-point and point-to-multipoint relay bridge function, which improves the feasibility of outdoor networking.

Features

  • Support IEEE 802.11 a, b, g, n, ac, ax tri-band concurrent
  • Using 4x4 MIMO technology, the transmission rate can reach 6573Mbps
  • 10/100/1000Mbps/2.5Gbps Ethernet port for uplink to ensure wireless high-speed transmission
  • POE Remote Power makes network deployment easier
  • IP68 waterproof level
  • Supports point-to-point and point-to-multipoint relay bridge functions, improving the feasibility of outdoor networking

Specification

chip Qualcomm IPQ6010
storage 512MB DDR4
32MB NOR Flash
256MB NAND
Flash
Standard protocol IEEE 802.11 a, b, g, n, ac, ax
spatial flow 2.4GHz: 2x2:2 5GHz1: 2x2:2 5GHz2: 4x4:4
rate 802.11ax (2.4GHz): 573.5Mbps 802.11ax (5GHz1): 1200Mbps 802.11ax (5GHz2): 4800Mbps
bandwidth 2.4GHz: 20/40 MHz 5GHz1: 20/40/80 MHz 5GHz2: 20/40/80/160 MHz
Countries and regions
Frequency range and working channel
Taiwan
2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8channels
5.500 – 5.720 GHz;12 channels
5.745 – 5.825 GHz; 5channels
USA
2.412 – 2.462 GHz; 11 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz; 12 channels
5.745 – 5.825 GHz; 5 channels
EU
2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.700 GHz; 11 channels
China
2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.745 – 5.825 GHz; 5 channels
Japan
2.412 – 2.472 GHz; 13 channels
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz; 12 channels
India
5.180 – 5.320 GHz; 8 channels
5.500 – 5.720 GHz; 12 channels
5.745 – 5.865 GHz; 7 channels
*The working channel depends on the configured regulatory domain.
maximum output power 2.4GHz:
23dBm (Single Chain)
5GHz1:
23dBm (Single Chain)
5GHz2:
23dBm (Single Chain)
*Maximum power settings are varied by channel and Country/Region's regulations.
Sensitivity -82dBm (Min.)
2.4GHz:
HT20: -82dBm/HT40: -79dBm
5GHz:
VHT20: -82dBm/ VHT40: -79dBm/ VHT80: -76dBm
connector 2xRJ45 support 10/100/1000Mbps/2.5Gbps
Environmental Specifications Storage
Temperature: -45 ~ 70 ℃/-49 ~ 158℉
Humidity: 5 ~ 95%
Operation
Temperature: -45 ~ 55 ℃/-49 ~ 131℉
Humidity: 5 ~ 95% (non-condensing)
power supply Power consumption ≤ 35W
USB connection device ≤ 40W
power input
WAN: PoE+ (802.3bt)
Bluetooth Version 5.0 Frequency 2400~2480MHz

Dimensions

MX6022A-ME8 dimensions

Connector

connector

Antenna Radiation Pattern

Antenna Radiation Pattern

Antenna Radiation Pattern
