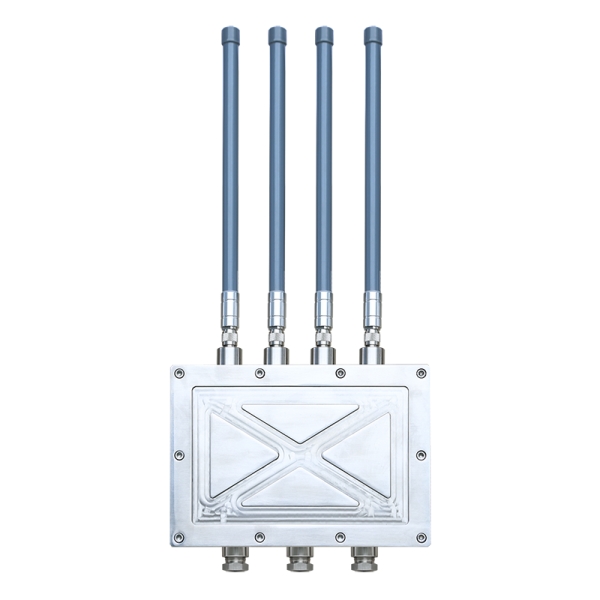

MX844-1D Industrial Explosion-proof 5G Router/Exd IIB T6 Gb/Ex tD A21 IP68 T80℃

MX844-1D Industrial Explosion-proof 5G Router/Exd IIB T6 Gb/Ex tD A21 IP68 T80℃


Category: Explosion Proof 4G/5G Router


Datasheet SERIES PRODUCTS contact

Description

The MX844-1D explosion-proof 5G router adopts industrial-grade material selection, design, and technology to ensure robust communication under extreme conditions and strong interference conditions. It is a router that supports multiple Internet access (Ethernet/WIFI client/4G/5G/ NBIoT), an IoT gateway device with a variety of local data access (5G/1000M Ethernet) full-stack intelligent protocols. The device is loaded with WAN communication, VPN tunnel, WIFI LAN and other functions, and provides customers with open source codes adapted to various devices to realize the seamless connection of wireless LAN, Ethernet, intelligent hardware and wireless WAN, providing intelligent manufacturing, warehousing and logistics Provide professional wireless communication for industry, transportation, electric power and other industries.

MX844-1D explosion-proof 5G router adopts high-performance industrial-grade MIPS communication processor , with embedded operating system as the software support platform, the system integrates a full range of communication protocols from logical link layer to application layer, and supports VPN (PPTP, L2TP) , IPTABLE firewall, static and dynamic routing, PPPOE, DHCP Server and DHCP Client, DMZ host, WEB configuration, support APN/VPDN, etc. It supports automatic dial-up after power-on, automatic maintenance of communication links, and hardware-level watchdog WDT protection to ensure that the device is always online.

Features

  • Intelligent anti-dropping, support online detection, online maintenance, automatic redialing when disconnected, to ensure that the device is online for a long time
  • Support network link backup, seamlessly switch to wireless network when wired disconnection, and can automatically detect wired recovery
  • Cloud remote platform management, remote upgrade and remote configuration
  • Support VPN security tunnel function, including PPTP, L2TP
  • Support 2.4G wireless client, wireless AP function [optional]
  • Complete and robust router functions, supporting multiple Internet access methods: dynamic IP, static IP, PPPoE
  • Support IPTABLES firewall, secure network protocol
  • Support dynamic DDNS: support peanut shell, dyndns and other domain name service providers
  • Convenient and easy-to-use CONSOLE and SYSLOG system diagnosis and debugging functions
  • Support serial port local TFTP, web software upgrade
  • Explosion-proof grade: Ex dⅡB T6 Gb/Ex tD A21 IP68 T80℃
  • Industrial-grade power supply: wide-voltage power supply design, the power supply range is DC6-36V /3A optional, built-in power reverse protection
  • Professional-grade MIPS_880Mhz dual-core high-performance embedded processing; with 32 KB D-Cache, cache data, speed up high-speed data access; with 64 KB I-Cache, high-speed instruction cache, strengthen instruction processing speed
  • Industrial-grade wireless CPE: using industrial-grade wireless modules, strong anti-interference, stable transmission
  • Produced with strictly screened industrial-grade components
  • UIM/SIM card ESD protection: 1.8V/3V standard push rod user card interface, built-in 15KV ESD protection
  • Independent hardware watchdog, effectively guarantee the stable operation of the system

Specification

internet connection internet access APNs, VPDNs
access authentication CHAP/PAP/MS-CHAP/MS-CHAP V2
network format Support NR, LTE, WCDMA(HSPA+), EDGE, GPRS
LAN protocol Support ARP, Ethernet
WAN protocol Support static IP, DHCP, PPPoE
Network protocol IP application Support DHCP server/client, domain name DDNS, Telnet, SSH, HTTP
IP routing Support static routing, IGMP Proxy
cyber security firewall Stateful Packet Inspection (SPI), Defense against Denial of Service (DoS) Attacks
Filter multicast/ping probe packets, access control list (ACL)
Support NAT, PAT, DMZ, port mapping, virtual server
Data Security Support L2TP, PPTP
other technologies Support ARP protection attack, DMZ (demilitarized zone), MAC address filtering
reliability Link online detection Send heartbeat packet detection, automatic connection when disconnected
Embedded watchdog Equipment operation self-inspection technology, equipment operation fault self-repair
WLAN protocol standard IEEE 802.11b/g/n
security features Open system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption
Operating mode AP, Client working mode
intelligent DTU function Support TCP, UDP transparent transmission mode, TCP Server mode
network management configuration method Support local or remote HTTP, Telnet, SSH methods
Upgrade method Support local or remote WEB, TFTP
log function Support for local syslog
SMS function Status query, restart

Technical Parameters

wireless parameters WIFI basic parameters Working frequency band: 2.4GHz
Channel selection: channel 1 - 13; 2.4GHz
Optional wireless mode: 11b/g/n, 11bg mixed, 11bgn mixed(Def) 2.4G
Speed: 300Mbps (Max)
2.4G Power: 14dB (±2dB)
EVM: 35dB (±2dB) HT20 HT40
number of connections Up to 128 users can access at the same time
security parameters Support 64/128 bit WEP encryption
Support WPA-PSK/WPA2-PSK authentication type Support TKIP, CCMP/AES encryption algorithm
LTE module parameters Working frequency band: 1.8G: 1785MHz~1805MHz
Channel range: 1.8G: Band 59, 54200~54399, Band 62, 65200~65399
Bandwidth: Bandwidth supports 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz
Maximum transmit power: private network frequency band: +23±2dBm
Secondary amplification: support external power amplifier
Transmission distance Unobstructed/open outdoors, coverage up to 100 meters
hardware parameters CPU MIPS CPU, MT7621DAT dual-core main frequency 880Mhz
storage 128Mbits SPI Flash
Memory 1024Mbits DDR3 【chip built-in】
Appearance and size Product Dimensions 294mm*229mm*97mm
Operating temperature -40ºC~80ºC
Storage temperature -40ºC~85ºC
humidity 95% (no condensation)
interface parameters WAN port (LAN1) 1 10/100/1000M self-adaptive WAN port, built-in isolation, supports automatic flip (Auto MDI/MDIX),
LAN port (LAN2) 1 10/100/1000M self-adaptive LAN port, support auto flip (Auto MDI/MDIX);
USB port Built-in USB3.0 port
indicator light 2 LAN port lights (at the network cable port)
Antenna interface Standard 4 antenna ports
USIM card interface 1 SIM card holder (built-in standard MicroSIM card holder)
power interface Standard DC interface 6V-36V /3A
power consumption About less than 20W
