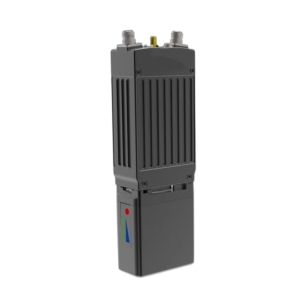

The handheld ad hoc radio is small in size, light in weight, and equipped with a removable lithium battery. It can be held in hand or carried on the shoulder or back of a single soldier. With fast network access and automatic multi-hop relay, it can provide voice group calls, video return, relay transmission and other multimedia communication services for single soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration. It has both Beidou positioning function and supports wifi coverage, and can be used with smart terminals with wifi function for various communications. The system adopts the same frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
The self-organizing network algorithm with strong robustness is embedded, and no central gateway is required. Any one can realize the self-organizing network function. In actual applications, mesh network design can be used without worrying about network disconnection. It can provide wireless broadband communication for "peace and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, disaster relief, daily patrols, etc. The transmission distance can reach more than 5km in an open environment on the ground, 300~500m in an obstructed environment (depending on the obstruction environment), and more than 20km from the air to the ground.



Operating frequency 1300~1500MHz (200MHz-1.5GHz can be customized)
Carrier bandwidth 5/10MHz, self-adaptable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM (adaptive)
Transmission capacity Peak rate 26Mbps@10MHz>
Transmit power 1W
Receive sensitivity -100dBm@5MHz>
Video input Support IP network video input and WIFI video access
Networking Networking capability ≥64 nodes
Networking hop count >10 hops
Network topology No center network, star network, chain network, mesh network, etc.
Encryption method DES/AES128/AES256 (optional)
Power supply DC 12.6V changeable battery
Power consumption ≤20W
Device interface
Antenna interface TNC-K×2
WIFI interface SMA-K
Network interface Aviation plug connector (optional Beidou positioning function)
Voice Interface Aviation plug connector
Physical indicators
Device size ≤230×74×39mm (battery include)
Device weight ≤1200g (battery include)
Protection level IP65
Operating temperature -40℃~+65

Additional Info

  • Datasheet Datasheet
  • Product Description With fast network access and automatic multi-hop relay, it can provide voice group calls, video return, relay transmission and other multimedia communication services for single soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration. It has both Beidou positioning function and supports wifi coverage, and can be used with smart terminals with wifi function for various communications. The system adopts the same frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
  • 自定义按钮(联系码讯) Contact MAXON

The handheld ad hoc radio is small in size, light in weight, and equipped with a removable lithium battery. It can be held in hand or carried on the shoulder or back of a single soldier. With fast network access and automatic multi-hop relay, it can provide voice group calls, video return, relay transmission and other multimedia communication services for single soldiers, tactical teams, and tactical police dogs to achieve efficient collaboration. It has both Beidou positioning function and supports wifi coverage, and can be used with smart terminals with wifi function for various communications. The system adopts the same frequency networking and multi-hop relay, and supports any network topology, such as point-to-point, point-to-multipoint, chain relay, mesh network and hybrid network topology.
The self-organizing network algorithm with strong robustness is embedded, and no central gateway is required. Any one can realize the self-organizing network function. In actual applications, mesh network design can be used without worrying about network disconnection. It can provide wireless broadband communication for "peace and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, disaster relief, daily patrols, etc. The transmission distance can reach more than 5km in an open environment on the ground, 300~500m in an obstructed environment (depending on the obstruction environment), and more than 20km from the air to the ground.

System parameters
Operating frequency 1428~1448MHz
Carrier bandwidth 5/10/20MHz, self-adaptable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM (adaptive)
Transmission capacity Peak rate 90Mbps@20MHz>
Transmit power 2W
Receive sensitivity -97dBm@1MHz>
Video input Support IP network video input and WIFI video access
Networking Networking capability ≥52 nodes
Networking hop count >10 hops
Networking time 5s after system hot start
Network topology No center network, star network, chain network, mesh network, etc.
Encryption method AES128/AES256
Power supply DC 16.8V changeable battery
Power consumption ≤30W
Device interface
Antenna interface TNC-K×2
GPS interface SMA-K
WIFI interface SMA-K
Ethernet interface Aviation plug connector
Voice Interface Aviation plug connector
Physical indicators
Device size ≤200×74×39mm (battery include)
Device weight ≤850g (battery include)
Protection level IP65
Operating temperature -30℃~+65℃

Additional Info

  • Datasheet Datasheet
  • Product Description Anti-interference and anti-destruction: using COFDM, MIMO, ARQ and other technologies to improve data bandwidth and anti-interference performance; Flexible multi-node networking: according to channel quality, rate, error code and other indicators, link routing is automatically calculated and flexible networking is achieved; Full IP networking and intercommunication: support data transparent transmission, interconnection of multiple systems, and real-time interaction of multimedia services
