IT720AS air-side equipment is matched with air-side equipment to achieve long-distance two-way wireless video, audio, and data transmission. The longest air-to-ground transmission distance can reach more than 100km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star network communication.
The device provides multiple business interfaces, including 1 Ethernet port and 1 transparent TTL serial port. It has the characteristics of small size, light weight, easy installation, and easy use. The structure can be customized according to the usage scenario. It is very Suitable for use in image-data integrated wireless data transmission scenarios such as drones, unmanned ships, unmanned vehicles, and robots.



Specifications
System
Frequency 1428~1448MHz (supports frequency band expansion)
Bandwidth 5MHz/10MHz/20MHz (flexible and configurable)
Transmission OFDM
Modulation BPSK/QPSK/16QAM/64QAM (adaptive)
Transmission capacity 20Mbps@10MHz (peak rate)
Transmission distance 100km
Transmitting power 10W
Receiving sensitivity -99dBm@5MHz>
Frequency hopping Supports automatic hopping between the bands
Encryption Supports AES128
Power supply DC12V
Power consumption ≤30W
Interface
Antenna N type
Power DC5.2
Ethernet RJ45
UART Quick connection base
Data

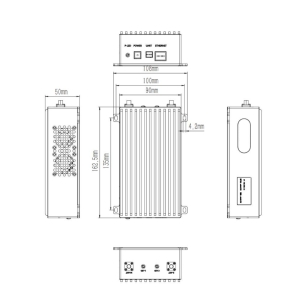

Dimensions 162.5*90*50mm
Weight ≤800g
Operation Temp Range -20℃~+75

Interface
Pin# Name Function Remarks
Enclosure: POWER (power port) / DC socket
1 VCC power supply +12V -
2 GND ground signal -
Enclosure: UART (communication serial port)/Quick connection base
1 EXT_TX0 Data serial port TX TTL/3.3V
2 EXT_RX0 Data serial port RX TTL/3.3V
3 GND ground signal -
Enclosure: ETHERNET (Ethernet port) / RJ45 socket
1 ETH_TXP TX+ (white green) 10/100M self-adaptive
2 ETH_TXN TX- (green)
3 ETH_RXP RX+ (white orange)
4 ETH_RXN RX- (orange)
Enclosure: M-ANT (main transceiver antenna port)/SMA socket
1 RFS1 radio frequency signal impedance: 50Ω
Enclosure: S-ANT (auxiliary receiving antenna port) / SMA socket
1 RFS2 radio frequency signal impedance: 50Ω

Additional Info

  • Datasheet Datasheet
  • Product Description The device provides multiple business interfaces, including 1 Ethernet port and 1 transparent TTL serial port. It has the characteristics of small size, light weight, easy installation, and easy use. The structure can be customized according to the usage scenario. It is very Suitable for use in image-data integrated wireless data transmission scenarios such as drones, unmanned ships, unmanned vehicles, and robots.
  • 自定义按钮(联系码讯) Contact MAXON

IT720GS ground-side equipment is matched with air-side equipment to achieve long-distance two-way wireless video, audio, and data transmission. The longest air-to-ground transmission distance can reach more than 100km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star network communication.
The device provides multiple business interfaces, including 1 Ethernet port and 1 transparent TTL serial port. It has the characteristics of small size, light weight, easy installation, and easy use. The structure can be customized according to the usage scenario. It is very Suitable for use in image-data integrated wireless data transmission scenarios such as drones, unmanned ships, unmanned vehicles, and robots.



Specifications
System
Frequency 1428~1448MHz (supports frequency band expansion)
Bandwidth 5MHz/10MHz/20MHz (flexible and configurable)
Transmission OFDM
Modulation BPSK/QPSK/16QAM/64QAM (adaptive)
Transmission capacity 20Mbps@10MHz (peak rate)
Transmission distance ≥100km
Transmitting power 10W
Receiving sensitivity -99dBm@5MHz>
Frequency hopping Supports automatic hopping between the bands
Encryption Supports AES128
Power supply DC12V
Power consumption ≤30W
Interface
Antenna N type
Power DC5.2
Ethernet RJ45
UART Quick connection base
Data

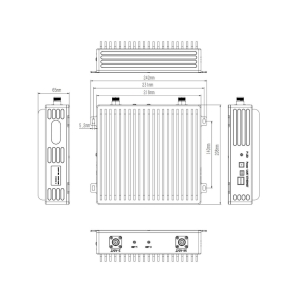

Dimensions 218*208*65mm (excluding mounting holes and antenna interface)
Weight ≤2kg
Operation Temp Range -20℃~+75

Interface
Pin# Name Function Remarks
Enclosure: POWER (power port) / DC socket
1 VCC power supply +12V -
2 GND ground signal -
Enclosure: UART (communication serial port)/Quick connection base
1 EXT_TX0 Data serial port TX TTL/3.3V
2 EXT_RX0 Data serial port RX TTL/3.3V
3 GND ground signal -
Enclosure: ETHERNET (Ethernet port) / RJ45 socket
1 ETH_TXP TX+ (white green) 10/100M self-adaptive
2 ETH_TXN TX- (green)
3 ETH_RXP RX+ (white orange)
4 ETH_RXN RX- (orange)
Enclosure: M-ANT (main transceiver antenna port)/SMA socket
1 RFS1 radio frequency signal impedance: 50Ω
Enclosure: S-ANT (auxiliary receiving antenna port) / SMA socket
1 RFS2 radio frequency signal impedance: 50Ω

Additional Info

  • Datasheet Datasheet
  • Product Description IT720GS ground-side equipment is matched with air-side equipment to achieve long-distance two-way wireless video, audio, and data transmission. The longest air-to-ground transmission distance can reach more than 100km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star network communication.
  • 自定义按钮(联系码讯) Contact MAXON

Base station type self-organizing network radio station can be fixedly installed by pole, wall and bracket, etc. It is mainly deployed at outdoor fixed points and mobile points on ships. It is waterproof and dustproof, easy to install and simple to operate. The equipment has large transmission power, covers a long communication distance, integrates data transmission and reception, dynamic routing, relay forwarding, and quickly self-organizes with other node devices to form a wireless multi-hop broadband network, providing users with wireless transmission services for multimedia services such as voice, data and video. All nodes are in line-of-sight or non-line-of-sight environments, without the need for a central gateway, all nodes are equal, and do not rely on wired communication lines, and wireless communication networks can be quickly established. It is particularly suitable for applications such as long-distance coverage link communication, information aggregation and return, regional coverage support, commanding heights enhanced coverage and relay transmission nodes, and can play a powerful role in emergency response, anti-terrorism and riot prevention, disaster relief, large-scale event support, temporary deployment and relay transmission. The transmission distance can reach more than 30km in an open ground environment, 1-5km in a blocked environment (depending on the blocking environment), and more than 100km from air to ground.



Operating frequency 1800~2300MHz
Carrier bandwidth 5/10/20MHz, self-adaptable
Transmission system COFDM
Modulation mode BPSK/QPSK/16QAM/64QAM (adaptive)
Transmission capacity Peak rate 52Mbps@20MHz, optional version up to 100Mbps
Transmit power 10W
Receive sensitivity -100dBm@5MHz>
Video input Support IP network video input and WIFI video access (HDMI/AV needs to be customized)
Networking Networking capability ≥64 nodes
Networking hop count >10 hops
Network topology No center network, star network, chain network, mesh network, etc.
Encryption method DES/AES128/AES256 (optional)
Power supply DC 28-36V
Power consumption ≤180W
Device interface
Antenna interface N-K×2
Beidou interface Aviation plug connector
WIFI interface SMA-K
Ethernet interface Aviation plug connector
Power interface Aviation plug connector
Physical indicators
Device size ≤340×240×135mm (battery include)
Device weight ≤7.5kg
Protection level IP65
Operating temperature -40℃~+65

Additional Info

  • Datasheet Datasheet
  • Product Description Security and confidentiality: through layer-by-layer encryption such as working frequency, carrier bandwidth, scrambling code, etc., support DES encryption; Anti-interference and anti-destruction: using COFDM, MIMO, ARQ and other technologies to improve data bandwidth and anti-interference performance; Flexible networking of multiple nodes: according to channel quality, rate, error code and other indicators, link routing is automatically calculated and networked flexibly.
